Step 3 — Reception

Receivers need at least four satellites to obtain a position (we will explain exactly why in Step 4). The use of more satellites, if they are available, will improve the position solution; however, the receiver’s ability to make use of additional satellites may be limited by its computational power. The manner by which the receiver uses the additional ranges will generally be the intellectual property of the manufacturer. That said, most user equipment can recover signals from multiple satellites in multiple GNSS constellations.

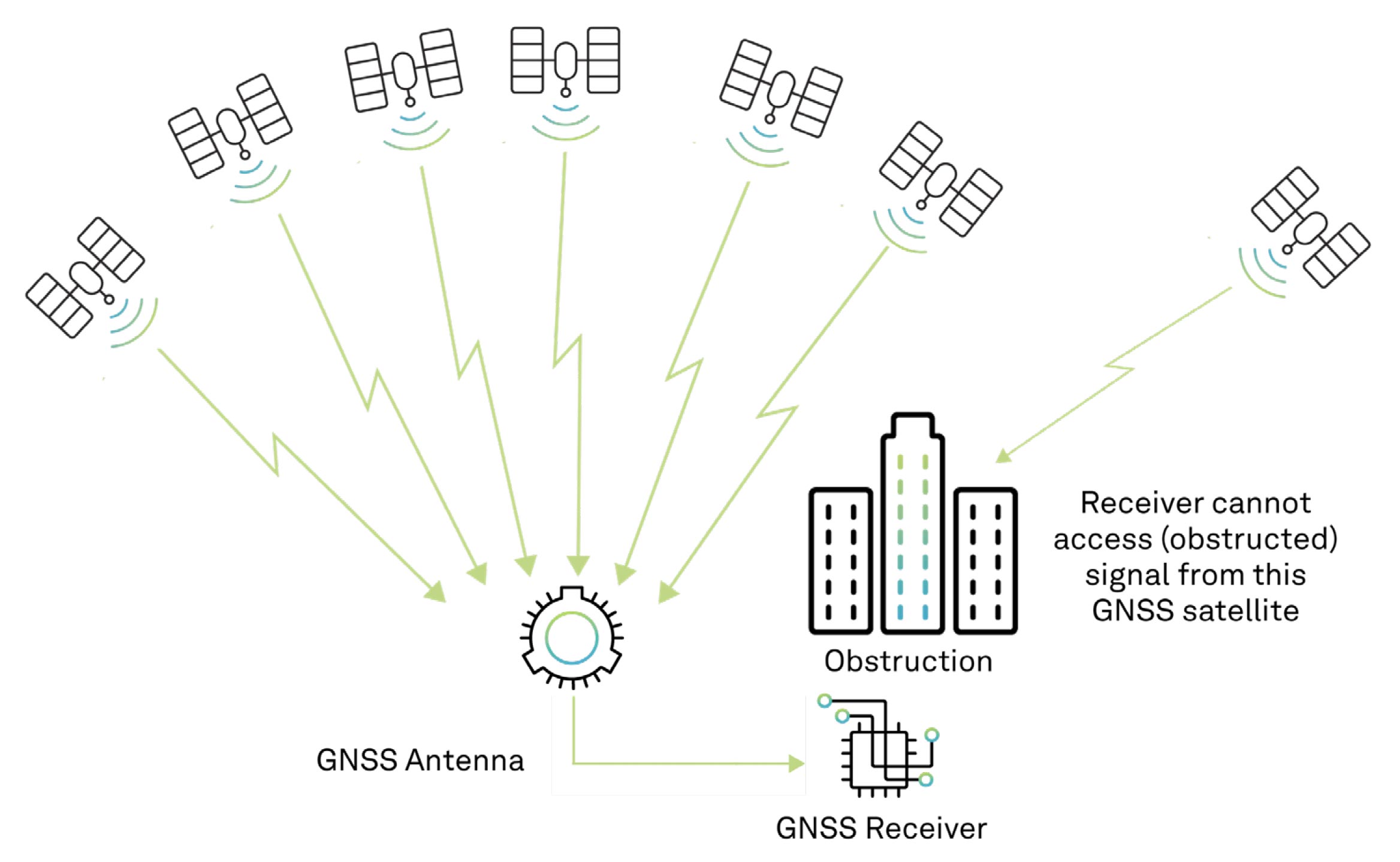

Figure 17 GNSS reception
Figure 17 GNSS reception

To determine a position and time, GNSS receivers need to be able to track at least four satellites from one of the GNSS constellations. This means there needs to be a line of sight between the receiver’s antenna and the four satellites.

For each satellite being tracked, the receiver determines the propagation time. It can do this because of the pseudorandom nature of the signals. Figure 18 illustrates the transmission of a pseudorandom code, a series of zeroes and ones. Since the receiver knows the pseudorandom code for each satellite, it can determine the time it received the code from a particular satellite. By comparing the time the signal was received with the transmission time stored in the satellite message, the receiver can determine the time of propagation.

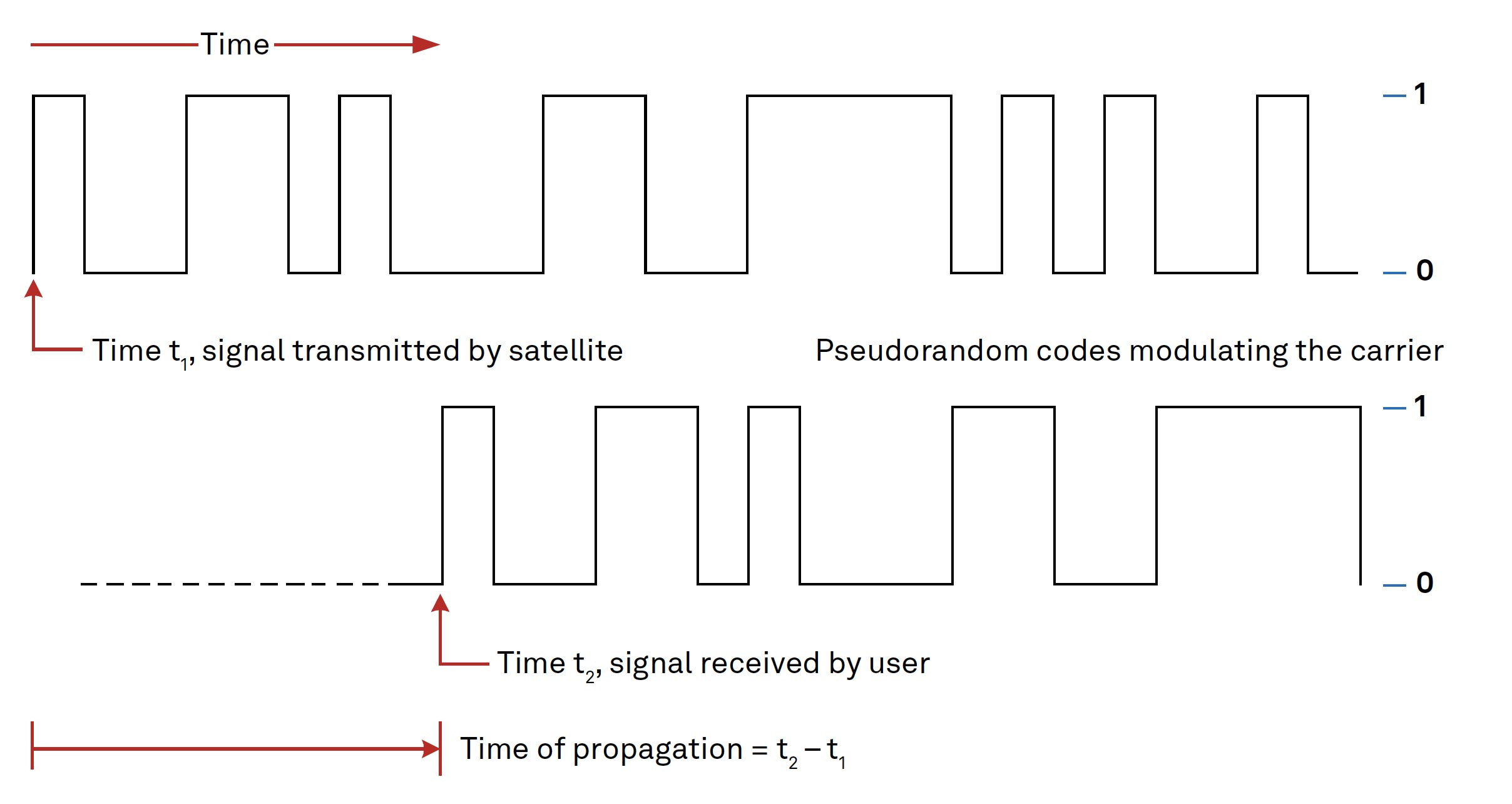

Figure 18 Determining time of propagation
Figure 18 Determining time of propagation

Importance of antenna selection

An antenna behaves both as a spatial and frequency filter; therefore, selecting the right GNSS antenna is critical for optimising performance. An antenna must match the receiver’s capabilities and specifications, as well as meet size, weight, environmental and mechanical specifications for the intended application.

Factors to consider when choosing a GNSS antenna include:

1. Constellation and signals

Each GNSS constellation has its own signal frequencies and bandwidths. An antenna must cover the signal frequencies transmitted by the constellation and bandwidth supported by the GNSS receiver.

2. Antenna gain

Gain is a key performance indicator of a GNSS antenna. Gain can be defined as the relative measure of an antenna’s ability to direct or concentrate radio frequency energy in a particular direction or pattern. A minimum gain is required to achieve a minimum carrier-to-noise ratio (C/No) to track GNSS satellites. The antenna gain is directly related to the overall C/No of the GNSS receivers. Hence, antenna gain helps define the tracking ability of the system.

3. Element gain

The element gain defines how efficient the antenna element is at receiving the signals. In any signal chain, you are only as good as the weakest link, so an antenna element with low element gain might be compensated by an increased low noise amplifier gain. The signal-to-noise ratio or C/No, however, is degraded.

4. Antenna beamwidth & gain roll-off

Gain roll-off is a factor of beamwidth and specifies how much the gain changes over the elevation angle of the antenna. From the antenna’s point of view, the satellites rise from the horizon towards zenith (directly overhead) and fall back to the horizon. The variation in gain between zenith and the horizon is known as the gain roll-off. Different antenna technologies have different gain roll-off characteristics. Satellites near the horizon are impacted more by multipath and atmospheric errors.

5. Phase centre stability

The phase centre of the antenna is the point where the signals transmitted from satellites are collected. When a receiver reports a location fix, that location is essentially the phase centre of the antenna. The electrical phase centre of any antenna will vary with the position of the transmitting signal it is receiving by as much as a few millimetres (fractions of an inch). As GNSS satellites move across the sky, the electrical phase centre of the signal received will typically move with the satellite position unless the antenna has been carefully designed to minimise Phase Centre Offset (PCO) and Phase Centre Variation (PCV).

Figure 19 Plot of good and poor antenna phase centre variation over elevation angle
Figure 19 Plot of good and poor antenna phase centre variation over elevation angle

The PCO, with respect to the Antenna Reference Point (ARP), is the difference between the mechanical centre of antenna rotation and electrical phase centre location. The PCO is also frequency dependent which means that there can be a different offset for each signal frequency.

The PCV identifies how much the phase centre moves with respect to the satellite elevation angles, see Figure 19.

Many users can accept accuracies of less than a metre (one yard), so these small phase centre variations cause a negligible amount of position error. But if you require high precision, such as real-time kinematic (RTK) receivers that achieve position accuracies of one to four cm (0.4 to 1.6 inches), a few millimetres (fractions of an inch) of phase centre error can translate to a 10-15% error in reported position.

For RTK survey applications, geodetic grade antennas offer superior PCO/PCV performance.

6. Application

An antenna needs to meet the performance, environmental, mechanical and operational requirements of the intended application. For example, GNSS antennas used for aviation applications should be TSO/FAA certified and be rugged enough to handle extreme temperatures and vibration profiles. Survey rover antennas should be able to survive rough handling by surveyors, including a pole drop.
